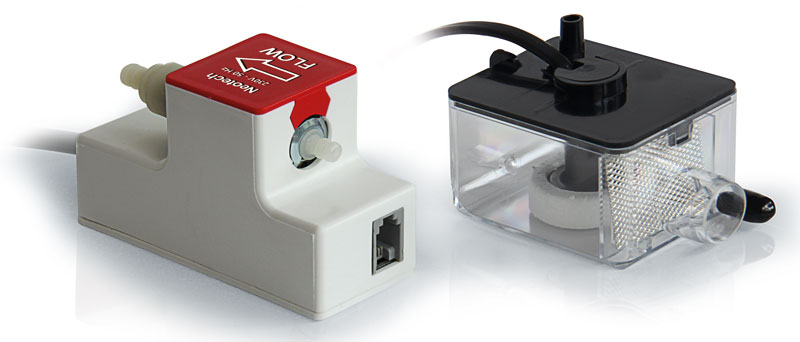

NEOTECH NTH 10.1 MAX CONDENSWATERPOMP CONDENSATE MINIPUMP
NEOTECH NTH 10.1 MAX CONDENSWATERPOMP CONDENSATE MINIPUMP€ 85,00 Excl. VAT salesteam@ziggo.nl Omschrijvingsalesteam@ziggo.nl
NEOTECH NTH 10.1 MAX CONDENSWATERPOMP CONDENSATE MINIPUMP 0224-850552 0031 224 850552 (international) 06-52634163 0031 652634163 (international) Description he pump and the tank are designed to collect and discharge the condensate. The small dimensions and the fast wiring make the installation easy and fl exible. The duct can be installed on the left or on the right of the air-conditioning system. The alarm signal includes double contacts normally open or closed. The Max tank doubles the condensate holding capacity. Into the box • Condensate minipump mm 91 x 33,5 x H 51 with power and alarm cables 2 m • Extra large tank mm 126 x 45 x H 34,5 • Inlet pipe cm 10 x Ø 15 mm • Breather tube cm 10 x Ø 5 mm • Connecting pipe pump-tank 1 mt x Ø 4 mm • Discharge pipe 2 mt x Ø 6 mm • Double sided tape To fi x pump and tank Pump technical data • Max fl ow ...................................................... 11 l/h • Max suction .. ................................................ 2 m • Max head ..................................................... 22 m • Voltage .............................................. 230V - 50Hz • Max rated current.......................................30 mA • Alarm contacts ............NC-NA 5A Resistive 250V • Weight ........................................................ 1,1 Kg • Stainless steel inlet fi lter........................Ø 0,2 mm • Protection class ............................................ IP20 • Certification..................................................... CE • RoHS 2 compliant ................................ Approved LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER Specificaties
AanverwantDit product heeft geen gerelateerde producten. 21 november 2024
