NEOTECH UNDERSPLIT 10 CONDENSWATERPOMP CONDENSATE MINIPUMP€ 114,40 Excl. VAT
salesteam@ziggo.nl Omschrijvingsalesteam@ziggo.nl

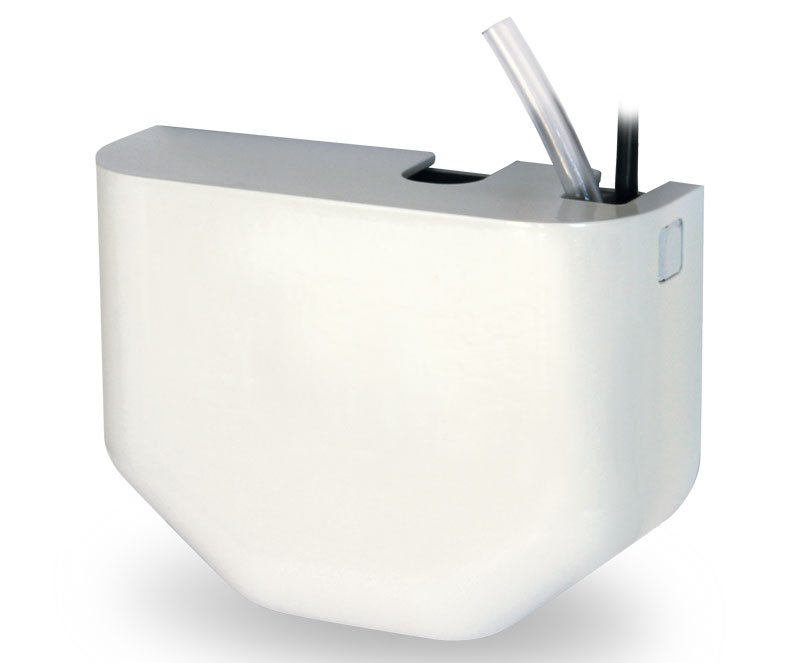

NEOTECH UNDERSPLIT 10 CONDENSWATERPOMP CONDENSATE MINIPUMP 0224-850552 0031 224 850552 (international) 06-52634163 0031 652634163 (international) Description UNDERSPLIT 10 is a compact condensate collection and drainage system with an attractive design, created to be installed underneath high-wall indoor units. It allows easy access for maintenance work. Into the box?: • Minipump mm 165 x 55 x H 126 wired with 2 m power cable and alarm • Delivery pipe 2 mt x Ø 6 mm • Kit Fixing screws kit Pump technical data • Max flow ......................................................11 l/h • Max head .....................................................22 m • Voltage ..............................................230V - 50Hz • Max rated current......................................30 mA • Alarm contacts .............................NC-NA 5A 50V • Weight ........................................................1,2 Kg • Stainless steel inlet fi lter........................Ø 0,2 mm • Protection class ............................................IP20 • Power cable ...................................................2 m • Inlet pipe.......................................max Ø 22 mm • Outlet pipe..............................................Ø 6 mm • Certification..................................................... CE • RoHS 2 compliant ................................ Approved LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER Specificaties
