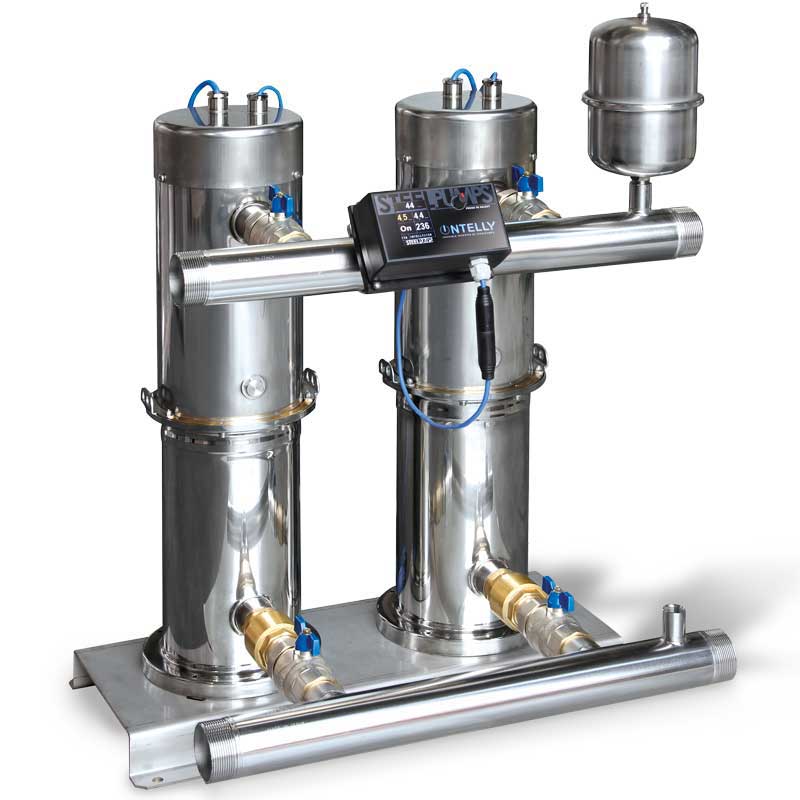

Electronic booster set with two inverter controlled pumps.

Description
TWINTELLY booster set with inverter technology, built with two pumps that send fl ow to a common collector. Each pump has integrated the INTELLY system and communicates each other thanks to a special connection. The TWINTELLY booster set is mainly used to increase the performance compared to a single pump, it ensures continuity of operation in case of a pump failure and distributes the maximum power. It also allows to keep the constant pressure in the installation, reducing the pendulum phenomena typical of pressure switch systems. However, a correct design and construction system cannot regardless of the installation of a hydroaccumulation tank membrane (not included in the supply) having purpose of damping small withdrawals from the system. The start and stop in controlled ramp of engine laps avoids water hammers. It’s not necessary the qualifi ed personnel due to the easy programming.

Applications
• Water pressurization
• Residential, commercial buildings
• Hotel facilities
• Industrial systems
• Hospitals

Pumped liquid: Clean water without any abrasive or suspended solids Liquid temperature +2ºC ÷ +40ºC Air temperature Max +45ºC Ignition pressure calibration (to be set)

Characteristics
• Protection against dry running
• Overcurrent protection
• IP68 pump protection class

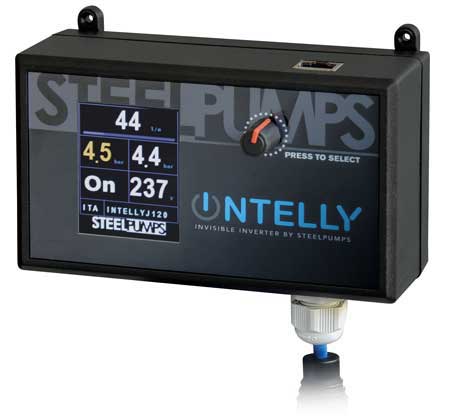

• Graphic display to visualize and adjust the parameters
• Alternating pump start system
• Storage of alarms for external investigation
• Stainless steel expansion tank 2 ltr.

Materials
• Motor body and pump body in AISI 304
• Brass and technopolymer motor support (fl anges)
• Brass check valves
• Motor shaft in AISI 420
• Diffusers and impellers in Technopolymer (1204 – 1505 – 2006)
• Intake and delivery manifold in AISI 304
• Pump support base in AISI 304
• Plastic flow sensor

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
