STEELPUMPS INTELLY ELECTRONIC BOOSTER PUMP POMP

salesteam@ziggo.nl
STEELPUMPS INTELLY ELECTRONIC BOOSTER PUMP POMP
With inverter control
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

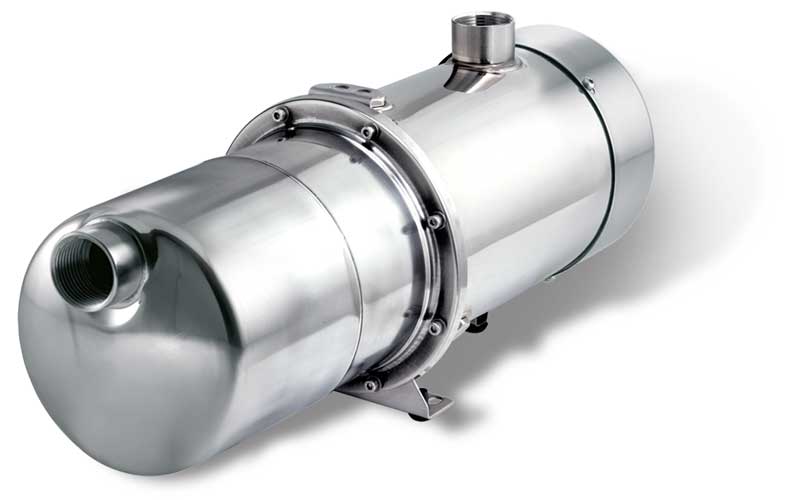

Horizontal multistage pump with integrated inverter control HIGH FLOW.

Description
INTELLY uses the most advanced Steelpumps technologies, to allow for pressure constant according to the request and consequently an optimization, also ensuring a reduction of noise. The presence of a communication display, the choice of the pump operating point, it turns out very simple, intuitive and feasible without special programming. Protection against dry-running antiblocking system every 72 hours of pump inactivity. The pump ensures comfort of pressure constant (adjustable set point) in the system and Applications a great energy savings.

Applications
 • Domestic boosting
• Irrigation
• Water treatment plants
• Industrial washing and cooling
• Use of rainwater
• Depth max 5 mtr.

Pumped liquid: Clean water without any abrasive or suspended solids Liquid temperature +2ºC ÷ +40ºC Air temperature Max +45ºC.

Materials
• Pump body and motor in AISI 304
• Brass and technopolymer motor support (fl anges)
• Shaft in AISI 420
• Diffuser: Technopolymer Noryl
• Impeller: Noryl • Dumping feet: rubber
• Mechanical seal: ceramic / graphite
• A2 Bolts • NBR70 O-ring
• ADB LIYY-HZO Electric cable 10m length
• Inverter electronic board according to Rohs standards
• Class F insulated motor
• Control box with display
• Plastic fl ow sensor
• Oil chamber on the mechanical seal

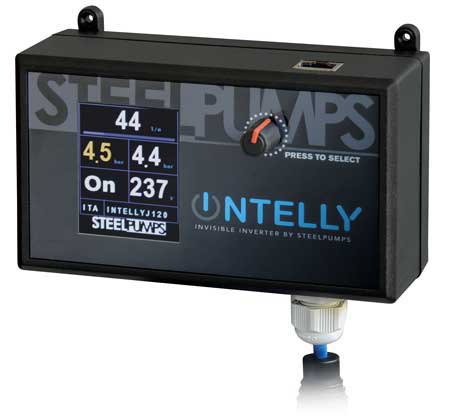

INTELLY Control Panel With fast connector
• Work value setting
• System diagnostic
• Historical memory
• Monitoring

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
