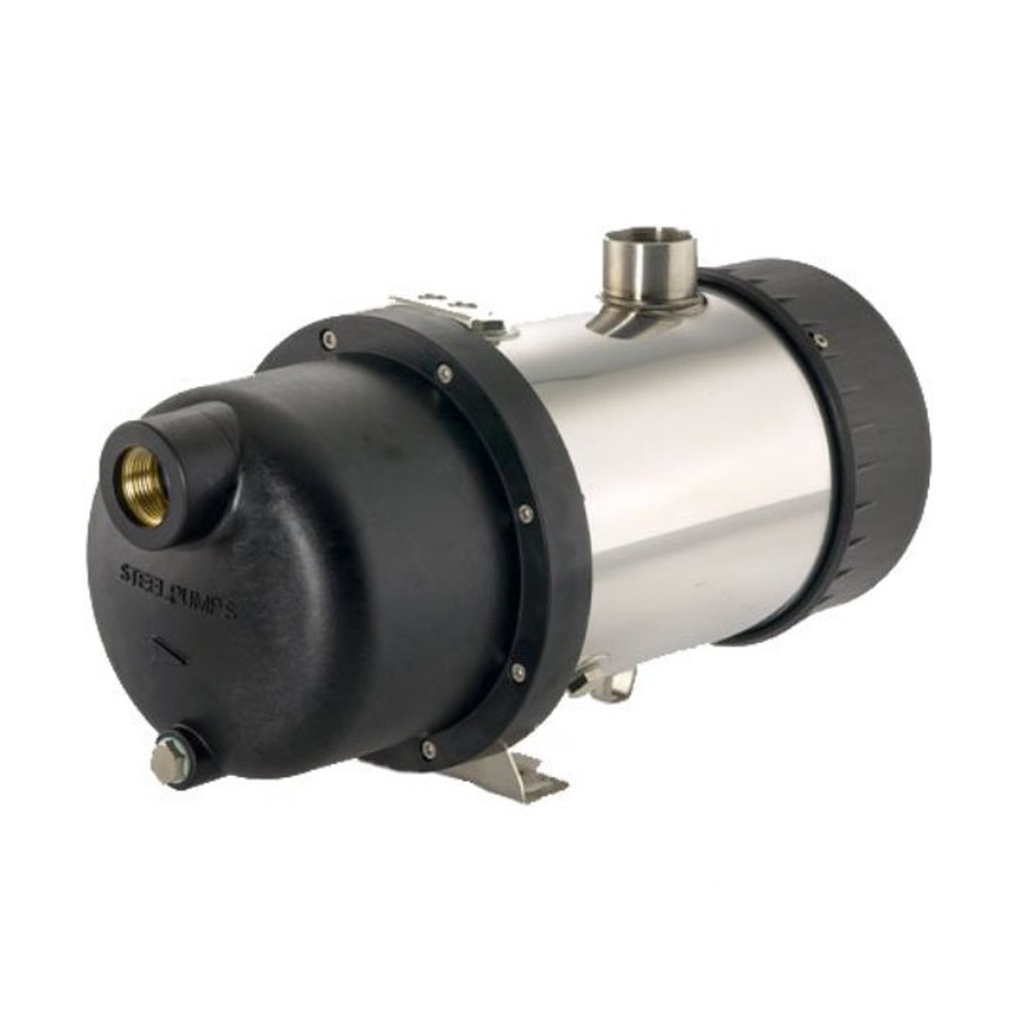

STEELPUMPS XJE 80B 100B 120B SELF-PRIMING JET CENTRIFUGAL PUMP

salesteam@ziggo.nl
STEELPUMPS XJE 80B 100B 120B SELF-PRIMING JET CENTRIFUGAL PUMP
With inverter control
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Description
Up/Down technology for submersed, surface or underground installation. Automatic system of water supply and dry-running protection. Antiblocking system every 72 hours of pump inactivity. Protection rating IP 68. The single-phase and three-phase versions of the XJE series, do not include integrated electronic control technology.

Materials
• Motor body: Stainless steel AISI 304
• Technopolymer fl anges and pump body
• Shaft: Stainless steel AISI 420
• Diffuser, impeller and venturi Jet: Noryl
• Rear cap: Polypropylene
• Basis: Stainless steel AISI 304
• Dumping feet: Rubber
• Mechanical seal: Graphite / ceramic
• Oil chamber on the mechanical seal
• A2 Stainless steel bolts
• NBR70 O-ring
• H07RN8-F Electric cable 10m length with Schuko plug
• Tropicalized circuit board in compliance with the RoHS directive
• Class F insulated motors

Applications
• Domestic boosting
• Medium sprinkling and surface irrigations
• Tank drainage and transfers

Pumped liquid: Clean water with no abrasive or suspended solids Liquid temperature +2°C ÷ +40°C Air temperature max +45°C Depth max 5 m Calibrating pressure rate switch 2.2 bar.




LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
