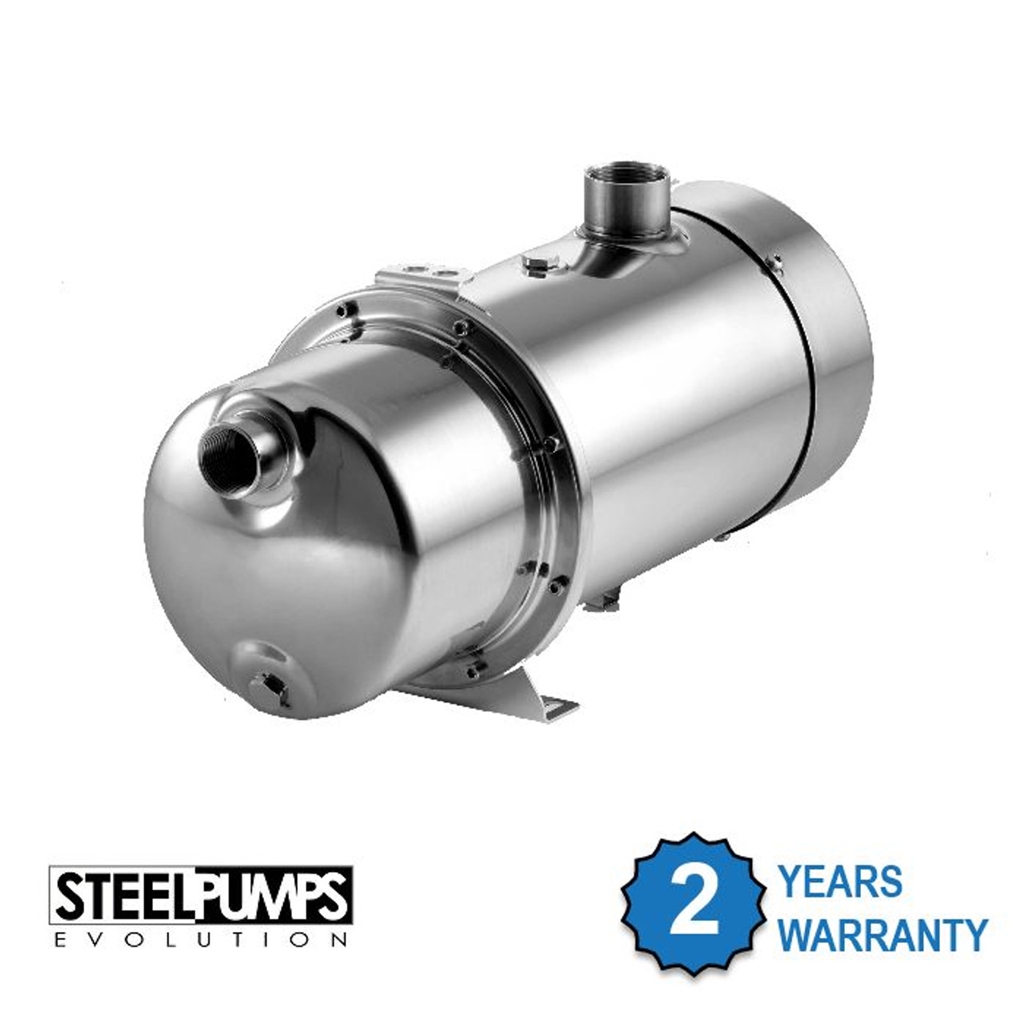

STEELPUMPS XAJE10024SD SELF-PRIMING JET CENTRIFUGAL PUMP

salesteam@ziggo.nl
STEELPUMPS XAJE10024SD  SELF-PRIMING JET CENTRIFUGAL PUMP
With inverter control
0224-850552
0031 224 850552 (international)
06-52634163
0031 652634163 (international)

Applications
• Boat boosting
• Temporary installations
• Tank drainage
• Hydraulic systems powered by solar energy
• Pressurization station for r electrically powered utilities . with rechargeable batteries

Pumped liquid: Clean water with no abrasive or suspended solids Liquid temperature +2°C ÷ +40°C Air temperature max +45°C Depth max 5 m Calibrating pressure rate switch 2.2 bar.

Description Up/Down technology for submersed, surface or underground installation. Automatic system of water supply and dry-running protection. Antiblocking system every 72 hours of pump inactivity. Protection rating IP 68

Pumped liquid:
Clean water with no abrasive or suspended solids
Liquid temperature +2°C ÷ +40°C
Air temperature max +45°C
Depth max 5 m
Calibrating pressure rate switch 2.2 bar

Description
Up/Down technology for submersed, surface
or underground installation.
Automatic system of water supply and dry-running
protection.
Antiblocking system every 72 hours of pump inactivity.
Protection rating IP 68.

Materials
• Motor body and pump body: Stainless steel AISI 304
• Special technopolymer fl anges
• Shaft: Stainless steel AISI 420
• Diffuser, impeller and venturi Jet: Noryl
• Basis: Stainless steel AISI 304
• Dumping feet: Rubber
• Mechanical seal: Graphite / ceramic and oil chamber
• A2 Stainless steel bolts
• NBR70 O-ring
• H07RN-F Electric cable 2x6 mm ² 5 m
• Tropicalized circuit board in compliance with the RoHS
directive
• Class F insulated motors
• DC motors / permanent magnets

LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER
