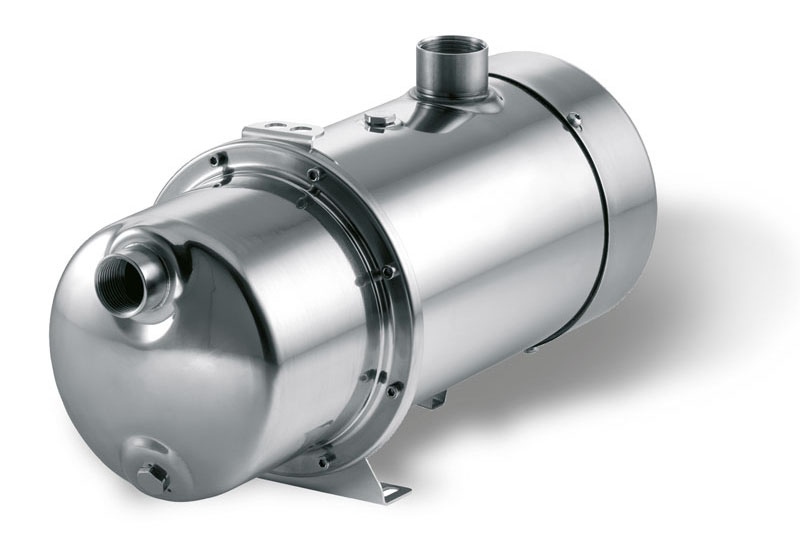

STEELPUMPS XMN80B 80BT SINGLE IMPELLER CENTRIFUGAL PUMP€ 305,76 Excl. VAT    salesteam@ziggo.nl Omschrijvingsalesteam@ziggo.nl
STEELPUMPS XMN80B 80BT SINGLE IMPELLER CENTRIFUGAL PUMP With inverter control 0224-850552 0031 224 850552 (international) 06-52634163 0031 652634163 (international) Materials • Motor body and pump body: Stainless steel AISI 304 • Brass fl anges • Shaft: Stainless steel AISI 420 • Diffuser and impeller: Noryl • Rear cap: Stainless steel AISI 304 • Basis: Stainless steel AISI 304 • Mechanical seal: Graphite / ceramic • Oil chamber on the mechanical seal • A2 Stainless steel bolts • NBR70 O-ring • H07RN8-F Electric cable 10m length with Schuko plug • Class F insulated motors Description p/Down technology for submersed, surface or underground installation. Automatic system of water supply and dry-running protection. Antiblocking system every 72 hours of pump inactivity Protection rating IP 68. Applications • Medium sprinkling and surface irrigations • Tank drainage and transfers Pumped liquid: Clean water with no abrasive or suspended solids Liquid temperature +2°C ÷ +40°C Air temperature max +45°C Depth max 5 m LEAD TERM ABOUT 1-1,5 WEEK AFTER ORDER Specificaties
DownloadsEr zijn geen downloads van dit product. 11 april 2025
