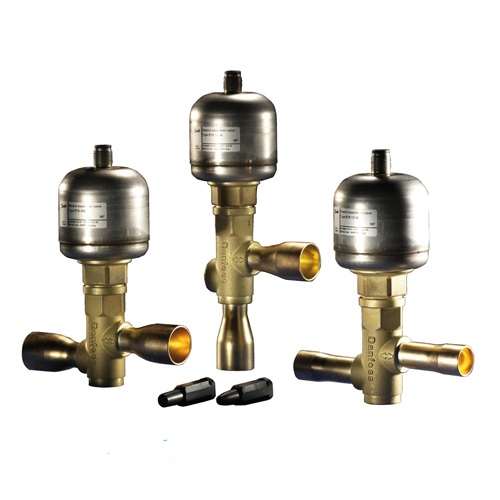

DANFOSS ADAP-KOOL ETS EXPANSIEVENTIELEN

salesteam@ziggo.nl
DANFOSS ADAP-KOOL ETS EXPANSIEVENTIELEN
0224-850552
06-52634163

-ETS-25 recht 5/8"x5/8"sold
 034G4202
 Specificaties

-ETS-25 recht 7/8"x7/8"sold.
 034G4203
 Specificaties

-ETS-25 haaks 5/8"x5/8"sold.
 034G4206
 Specificaties

-ETS-25 haaks 7/8"x7/8"sold.
 034G4207
 Specificaties

-ETS-250 1. 1/8"x 1.1/8"sold.
 034G2600
 Specificaties

-ETS-250 1. 5/8"x 1.5/8"sold
 034G2602
 Specificaties

-ETS 12.5 and ETS 25 body and AST motor enclosure in brass, connections in copper.
-Compatibility: R410A, R407C, R404A/R507, R134a, R22. For other refrigerants, please contact your local Danfoss representative.
-MOPD: 33 bar (480 psig).
-Max. working pressure: 45.5 bar (660 psig).
-Refrigerant temperature range: –40°C - 65°C (–40°F - 150°F).
-Ambient temperature: –40 - 60°C (–40 - 140°F).
-Motor enclosure: IP 67.
-Electrical connection: M12 connector.

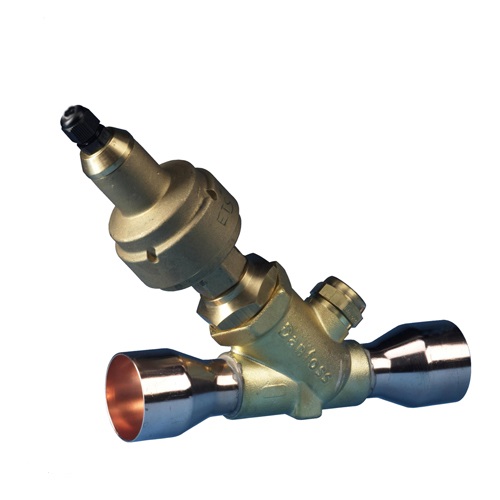

-ETS 250 and ETS 400 are equipped with sight glass with moisture indicator.
-Body and AST motor enclosure in brass, connections in copper.
-Compatibility: R407C, R404A/R507, R134a, R22. For other refrigerants, please contact your local Danfoss representative.
-MOPD: 33 bar (480 psig).
-Max. working pressure: 34 bar (493 psig).
-Refrigerant temperature range: –40°C - 65°C (–40°F - 150°F).
-Ambient temperature: –40 - 60°C (–40 - 140°F).
-Motor enclosure: IP 67.
-Electrical connection: M12 connector.
