DANFOSS MBT5252 TEMPERATUURSENSOR

salesteam@ziggo.nl
DANFOSS MBT-5252 TEMPERATURE PROBE TEMPERATURESENSOR
0224-850552
06-52634163

Type:

MBT-5252 G1/2 A 50 mm 084Z8210
*Specificaties

MBT-5252 G1/2 A 100 mm 084Z8211
*Specificaties

MBT-5252 G1/2 A 150 mm 084Z8212
*Specificaties

MBT-5252 G1/2 A 200 mm 084Z8213
*Specificaties

MBT-5252 G3/4 A 50 mm 084Z8230
*Specificaties

MBT-5252 G3/4 A 100 mm 084Z8231
*Specificaties

MBT-5252 G3/4 A 150 mm 084Z8232
*Specificaties

MBT-5252 G3/4 A 200 mm 084Z8233
*Specificaties

MBT-5252 G1/2 A 50 mm 084Z8214
*Specificaties

MBT-5252 G1/2 A 100 mm 084Z8215
*Specificaties

MBT-5252 G1/2 A 150 mm 084Z8216
*Specificaties

MBT-5252 G1/2 A 200 mm 084Z8217
*Specificaties

MBT-5252 G3/4 A 50 mm 084Z8234
*Specificaties

MBT-5252 G3/4 A 100 mm 084Z8235
*Specificaties

MBT-5252 G3/4 A 150 mm 084Z8236
*Specificaties

MBT-5252 G3/4 A 200 mm 084Z8237
*Specificaties

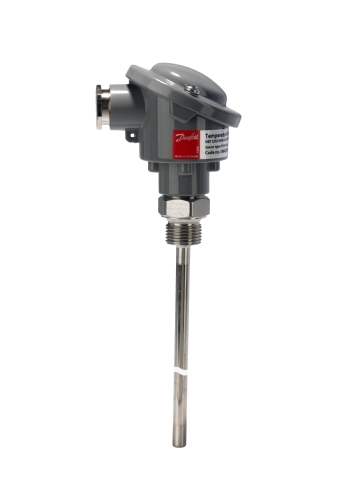

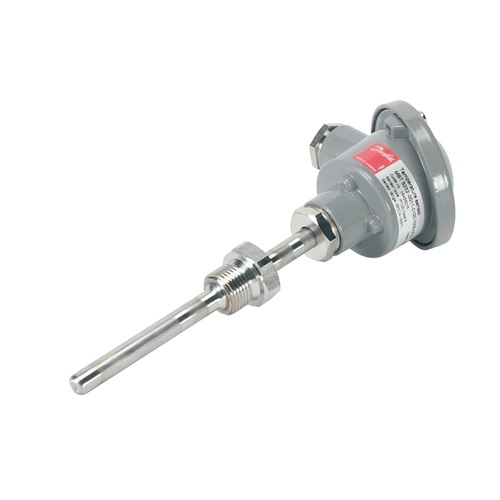

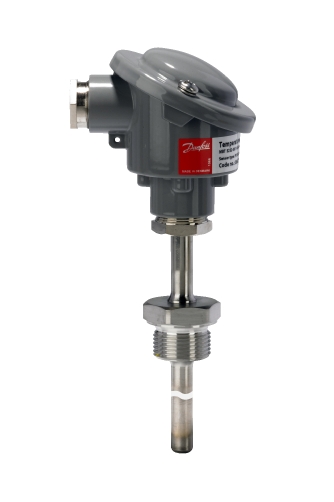

The MBT 5252 is a heavy-duty temperature sensor that can be used for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications.
This temperature sensor is based on a standardized Pt100 or Pt1000 element, which gives a reliable and accurate measurement. The MBT 5252 can be delivered with NTC/PTC elements on request.
If needed, a transmitter (MBT 9110) can be ordered as an integrated part of the sensor. In the low temperature version (-50 °C to +200 °C) the measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations.
All parts in contact with the media are made of stainless steel AISI 316 Ti. The MBT 5252 is equipped with a B-head as standard, but can be delivered with B-mini or B-head with screw cap on request. •For gaseous or liquid media, e.g. air, gas, vapour, water or oil.

•Up to +400° C media temperatures
•Available with built-in transmitter
•Available with all relevant marine approvals
