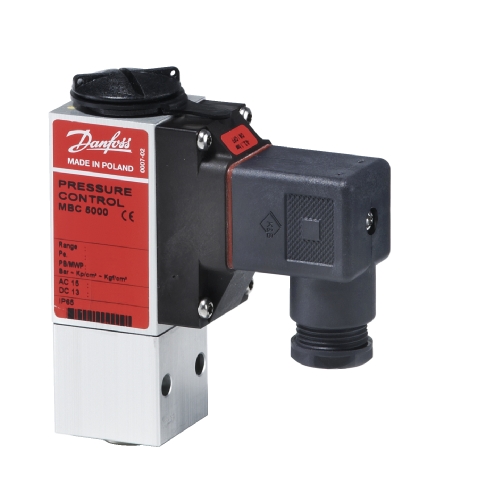

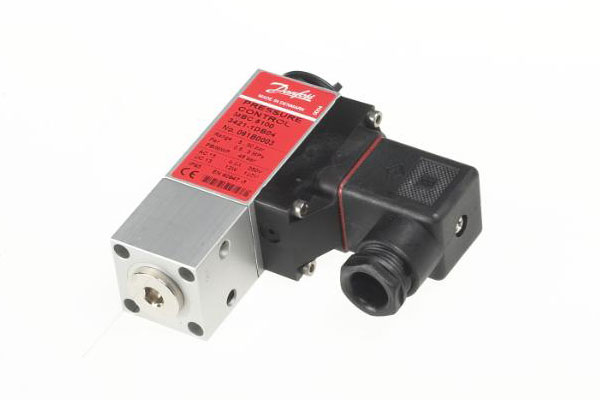

DANFOSS MBC5000 BLOKPRESSOSTATEN

salesteam@ziggo.nl
DANFOSS MBC5000 BLOKPRESSOSTATEN PRESSURESWITCH
0224-850552
06-52634163

MBC-5000 -0,2/4 bar 061B200466
*Specificaties

MBC-5000 -0,2/10 bar 061B200266
*Specificaties

MBC-5000 5/20 bar 061B300266
*Specificaties

MBC-5000 5/30 bar 061B200366
*Specificaties

MBC-5000 5/40 bar 061B300566
*Specificaties

MBC-5000 10/100 bar 061B300366
*Specificaties


Switch type: Microswitch (SPDT)
Contact load: 0,5 A, 250V - AC 15
Contact load: 12W, 125V - AC 13
Drukaansluiting: 1/4" inw. met flensaansluiting
Plug versie: DIN 43650 - IP 65
Keuring: Ten ship approvals (MBC 5100)

MBC pressure switches are used in marine applications where space and reliability are the most important features. MBCs are compact pressure switches, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships.
MBCs have high vibration resistance and feature all commonly marine approvals. The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC pressure switches. •Pressure ranges: -0.2 to 400 bar
•Low differential (fixed) micro switch
•Resistant to shock and vibrations
•Enclosure IP65
•Diaphragm version for applications with pulsations/pressure peaks
•Compact design
•Low installations costs
•Fast and easy to operate
•Easy to mount on block test valve
•Available as differential pressure switch
