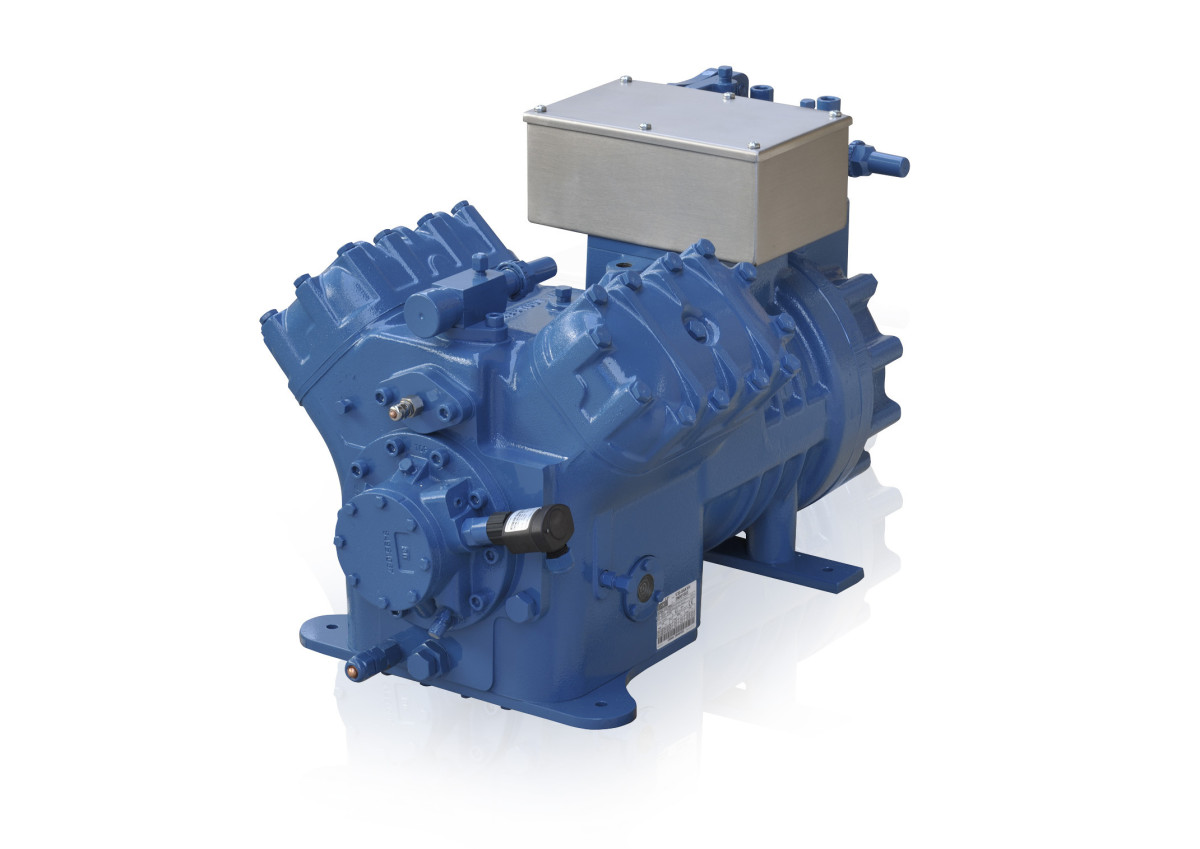

FRASCOLD V15 AXY ATEX COMPRESSORS

salesteam@ziggo.nl
FRASCOLD V15 AXY ATEX COMPRESSOR VERDICHTER COMPRESSEUR
0224-850552
06-52634163

Standard
4 cylinder compressor with integrated part winding start (PWS) electric motor and ptc probes connected to the protection system
Designed and manufactured in compliance with the safety requirements of the 94/9/CE ATEX directive. Suitable for use in environments with possible random presence of flammable gases in the atmosphere,
Available in three different versions
AXH for operation with hydrocarbons [R290, R1270, R600, etc.].
PAG lubricating oil charge
AXY for operation with HFC, HCFC, HFO refrigerants.
POE lubricating oil charge
AXE ECOinside build optimized for operation with R134a and HFO [R1234ze,R1234yf, etc.] refrigerants
POE type oil charge
•PWS (Y/YY) = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph)
•DOL (YY) = 50Hz/380-420V/3Ph (60Hz/440-480V/3Ph)
- Diagnose electronic module for monitoring, protection diagnostics and communication.
- suction and discharge valves
- IP56 electrical connections box
- POE32 oil load
- 2 oil sight glasses for visual checks or connection to automatic mechanical and electric devices/regulators
- rubber supports
- protection charge (inert gas 1 bar)
- appropriate packaging for transport, handling and storage

Options:
- electric motors for various voltage supply values
- oil heating resistors
- discharge temperature control sensor
- motor far for additional cooling
- head with idle start system
- head with RSH system for capacity control
- oil level electronic regulator
- flange+valve kit for aligned assembly
